KVG-20 Electric Gripper — 20mm Adjustable Stroke, 30-80N

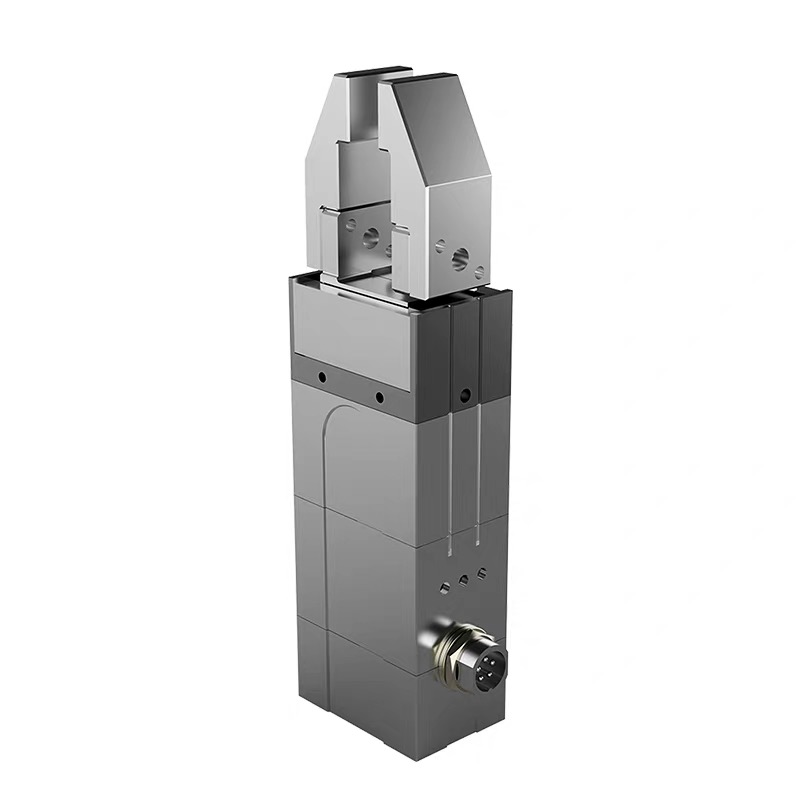

The KVG-20 is a two-finger parallel electric gripper with fully adjustable stroke and gripping force. It offers 20 mm adjustable stroke, 30–80 N adjustable gripping force and ±0.02 mm repeatability, handling workpieces up to 0.8 kg. Both stroke and force are user-adjustable, so one gripper covers fragile items and firm parts alike. The controller is built into the body — no external cabinet, no compressed air supply required.

Key Features of the KVG-20 Electric Gripper

Adjustable Stroke — 20 mm

Total stroke adjustable up to 20 mm. Set the opening to match your workpiece instead of over-travelling, which shortens cycle time.

Adjustable Gripping Force — 30 to 80 N

Gripping force adjustable from 30 to 80 N. Use low force for fragile items, higher force for firm parts — no hardware change needed.

High Force for Its Size

Up to 80 N gripping force in a 44 × 30 mm body — significantly stronger than same-size pneumatic grippers.

Built for Tight Spaces

Narrow 30 mm wide profile reaches into dense fixtures and small workcells where bulkier grippers cannot fit.

Safe on Fragile Items

Controlled force and adjustable stroke handle breakable and deformable workpieces — glassware, eggs, soft packaging — without crushing.

No Compressed Air Required

Fully electric — replaces compressor, filter, solenoid valve and pneumatic gripper. Ideal for labs, hospitals and clean environments.

KVG-20 Specifications

Mechanical

Electrical

Environment

Dimensions

Dimensions in mm. STEP file with full mounting pattern available on request.

Applications

• Fragile Object Handling — Adjustable force grips glassware, eggs and deformable items without crushing.
• Tight-Space Assembly — Narrow 30 mm body reaches into dense fixtures and small workcells.
• Mixed-Size Workpieces — Adjustable stroke handles varying part sizes on one line without changeover.
• Electronics & 3C Assembly — Handling connectors, small components and light assemblies.
• Laboratory Automation — Gripping test tubes, reagent cards and sample trays without compressed air.

Robot Compatibility

Digital I/O interface — integrates with most collaborative and industrial robot controllers, as well as PLC-based systems. Confirmed with UR, AUBO and Elite Robots.

Downloads

• 3D Model (STEP)
• Dimensional Drawing (PDF)
• User Manual (PDF)
• I/O Wiring Diagram

Frequently Asked Questions

Is the stroke adjustable?

Yes. Total stroke is adjustable up to 20 mm, so you can match the opening to your workpiece and avoid wasted travel time.

Is the gripping force adjustable?

Yes. Force is adjustable from 30 to 80 N.

What is the difference between KVG-20 and KVG-20S Ultra?

The KVG-20 delivers higher force (30–80 N) with adjustable stroke in a 44 × 30 × 124.7 mm body, at 0.45 s per stroke. The KVG-20S Ultra is smaller (43 × 24 × 93.9 mm) and much faster (0.15 s) but has fixed stroke and lower force (8–20 N). Choose KVG-20 for force and stroke flexibility; choose KVG-20S Ultra for maximum speed and the smallest footprint.

Does it require compressed air?

No. It is fully electric — no compressor, filter or solenoid valve needed.

Is the controller included?

Yes, the drive controller is built into the gripper. No extra charge.

What is the IP rating?

IP40 — suitable for standard industrial and laboratory environments. Not intended for washdown or outdoor use.

Request a Quote

Send us your payload, part size and cycle time — our engineers will shortlist suitable models within 24 hours. Contact us for pricing, OEM options and samples.
